LED Codes

Version 7 only
This section applies only to CADS devices running software version v7.x.x.

Normal mode codes

When the CADS operates in normal mode, the LEDs may display the following codes:

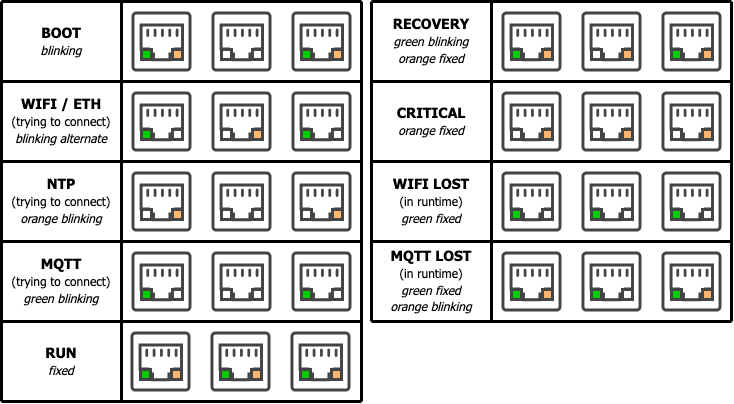

Normal mode LED codes

Maintenance mode codes

When the CADS is in MAINTENANCE, the LEDs may display the following codes:

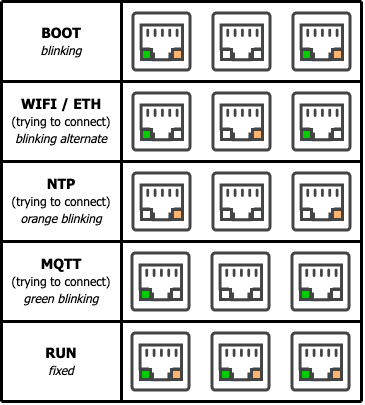

Maintenance mode LED codes (Centiboot)
